Setup a Docker Swarm cluster for less than $30 / month	2022-02-13	Build an opinionated containerized platform for developer...	docker swarm	build-your-own-docker-swarm-cluster	true

{{< lead >}} Build your own cheap while powerful self-hosted complete CI/CD solution by following this opinionated guide 🎉 {{< /lead >}}

Why Docker Swarm 🧐 ?

Because Docker Swarm Rocks !

Even if Docker Swarm has lost the enterprise graduate orchestration containers war, you don't have to throw yourself into all Kubernetes fuzzy complicated things for a simple homelab, unless for custom training of course.

If you know how to use docker-compose, you're already ready for Docker Swarm which use almost the same API with addition of specific deploy config.

I'll try to show you step by step how to install your own cheap containerized cluster for less than $30 by using Hetzner, one of the best Cloud provider on European market, with cheap but powerful VPS.

So the prerequisites before continue :

• Have some knowledge on docker-compose setups
• Be comfortable with SSH terminal
• Registered for a Hetzner Cloud account
• A custom domain, I'll use okami101.io here
• A account to a transactional mail provider as mailgun, sendgrid, sendingblue, etc.

{{< alert >}} You can of course apply this guide on any other cloud provider, but I doubt that you can achieve lower price. {{< /alert >}}

Final goal 🎯

In the end of this multi-steps guide, you will have complete working production grade secured cluster, backup included, with optional monitoring and complete development CI/CD workflow.

1. Cluster initialization 🌍

• Initial VPS setup for docker under Ubuntu 20.04 with proper Hetzner firewall configuration
• Docker Swarm installation, 1 manager and 2 workers
• Traefik, a cloud native reverse proxy with automatic service discovery and SSL configuration
• Portainer as simple GUI for containers management

2. The stateful part 💾

For all data critical part, I choose to use 1 dedicated VPS. We will install :

• GlusterFS as network filesystem, configured for cluster nodes
• Loki with Promtail for centralized logs, fetched from data node and docker containers
• PostgreSQL as main production database
• MySQL as additional secondary database (optional)

Note as I will not set up this for HA (High Availability) here, as it's a complete another topic. So this data node will be our SPF (Single Point of Failure) with only one file system and DB.

{{< alert >}} There are many debates about using databases as docker container, but I personally prefer use managed server for better control, local on-disk performance, central backup management and easier possibility of database clustering.
Note as on the Kubernetes world, run containerized databases becomes reality thanks to powerful operators that provide easy clustering. The is obviously no such things on Docker Swarm 🙈 {{< /alert >}}

Data Backup (optional)

Because backup should be taken care from the beginning, I'll show you how to use Restic for simple backups to external S3 compatible bucket.

3. Testing the cluster ✅

We will use the main Portainer GUI in order to install following tools :

• Diun (optional), very useful in order to be notified for all used images update inside your Swarm cluster
• pgAdmin and phpMyAdmin as web database managers (optional)
• Some demo containerized samples that will show you how simple is it to install self-hosted web apps thanks to your shiny new cluster as redmine, n8n

4. Monitoring 📈

This is an optional part, feel free to skip. We'll set up production grade monitoring and tracing with complete dashboards.

• Prometheus as time series DB for monitoring
  • We will configure many metrics exporter for each critical part (Data node, PostgreSQL, MySQL, containers detail thanks to cAdvisor)
  • Basic usage of PromQL
• Jaeger as tracing tools
  • We will use Elasticsearch as main data storage
• Traefik configuration for metrics and trace as perfect sample
• Grafana as GUI dashboard builder with many battery included dashboards
  • Monitoring all the cluster
  • Node, PostgreSQL and MySQL metrics
  • Navigate through log history of all containers and data server node thanks to Loki like ELK, with LogQL

5. CI/CD setup 💻

• Gitea as lightweight centralized control version, in case you want get out of Github / GitLab Cloud
• Private docker registry with minimal UI for all your custom app images that will be built on your development process and be used as based image for your production docker on cluster
• Drone CI as self-hosted CI/CD solution
• SonarQube as self-hosted quality code control

Finally, we'll finish this guide by a simple mini-app development with above CI/CD integration !

Cluster Architecture 🏘️

Note as this cluster will be intended for developer user with complete self-hosted CI/CD solution. So for a good cluster architecture starting point, we can imagine the following nodes :

server	description
manager-01	The frontal manager node, with proper reverse proxy and some management tools
worker-01	A worker for your production/staging apps
runner-01	An additional worker dedicated to CI/CD pipelines execution
data-01	The critical data node, with attached and resizable volume for better flexibility

{{< mermaid >}} flowchart TD subgraph manager-01 traefik((Traefik))<-- Container Discovery -->docker[Docker API] end subgraph worker-01 my-app-01((My App 01)) my-app-02((My App 02)) end subgraph runner-01 runner((Drone CI runner)) end subgraph data-01 logs[Loki] postgresql[(PostgreSQL)] files[/GlusterFS/] mysql[(MySQL)] end manager-01 == As Worker Node ==> worker-01 manager-01 == As Worker Node ==> runner-01 traefik -. reverse proxy .-> my-app-01 traefik -. reverse proxy .-> my-app-02 my-app-01 -.-> postgresql my-app-02 -.-> mysql my-app-01 -.-> files my-app-02 -.-> files {{< /mermaid >}}

Note as the hostnames correspond to a particular type of server, dedicated for one task specifically. Each type of node can be scale as you wish :

replica	description
manager-0x	For advanced resilient Swarm quorum
worker-0x	For better scaling production apps, the easiest to set up
runner-0x	More power for pipeline execution
data-0x	The hard part for data HA, with GlusterFS replications, DB clustering for PostgreSQL and MySQL, etc.

{{< alert >}} For a simple production cluster, you can start with only manager-01 and data-01 as absolutely minimal start.
For a development perspective, you can skip worker-01 and use manager-01 for production running.
You have plenty choices here according to your budget ! {{< /alert >}}

Hetzner VPS 🖥️

Here some of the cheapest VPS options we have :

Server Type	Spec	Price
CPX11 (AMD)	2C/2G/40Go	€4.79
CX21 (Intel)	3C/4G/80Go	€5.88
CPX21 (AMD)	3C/4G/80Go	€8.28

My personal choice for a good balance between cheap and well-balanced cluster :

Server Name	Type	Why
manager-01	CX21	I'll privilege RAM
runner-01	CPX11	2 powerful core is better for building
worker-01	CX21 or CPX21	Just a power choice matter for your app
data-01	CX21 or CPX21	Just a power choice matter for your database

We'll take additional volume of 60 Go for €2.88

We finally arrive to following respectable budget range : €25.31 - $31.31

The only difference being choice between Xeon VS EPIC as CPU power for worker and data nodes, which will our main production application nodes. A quick sysbench will indicates around 70-80% more power for AMD (test date from 2022-02). Choose wisely according to your needs.

If you don't need of worker and runner nodes, with only one simple standalone docker host without Swarm mode, you can even go down to €14,64 with only 2 CX21 in addition to volume.

{{< alert >}} If you intend to have your own self-hosted GitLab for an enterprise grade CI/CD workflow, you should run it on node with 8 GB of RAM.
4 GB is doable if you run just one single GitLab container on it with Prometheus mode disabled and external PostgreSQL. {{< /alert >}}

Let's party 🎉

Before continue I presume you have :

• Hetzner cloud account ready
• Installed hcloud cli
• Have a local account SSH key

Initiate the project by following this simple steps :

1. Create the project through the UI (I will use swarm-rocks as project's name here)

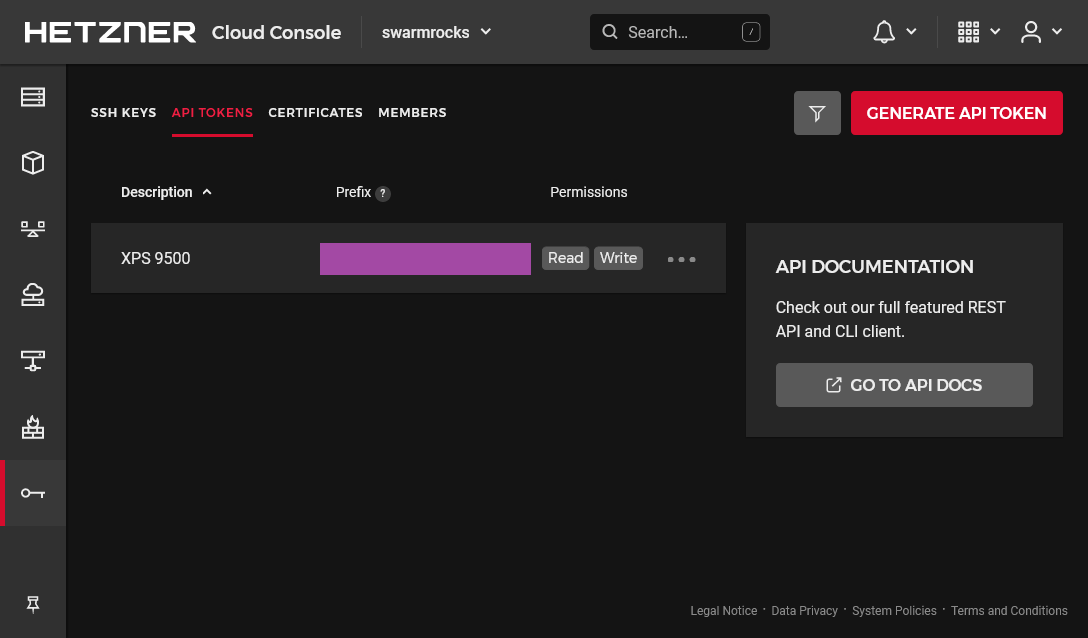

2. Navigate to security > API tokens
3. Generate new API key with Read Write permissions and copy the generated token

Then go to the terminal and prepare the new context

hcloud context create swarm-rocks # set the copied token at prompt
hcloud context list # check that your new project is active

# set your ssh key to the project
hcloud ssh-key create --name swarm --public-key-from-file .ssh/id_ed25519.pub

Now we are ready to set up the above architecture !

Create the cloud servers and networks ☁️

# create private network
hcloud network create --name network-01 --ip-range 10.0.0.0/16

# create a subnet for the network
hcloud network add-subnet network-01 --type server --network-zone eu-central --ip-range 10.0.0.0/24

# create manager server
hcloud server create --name manager-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create worker server
hcloud server create --name worker-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create runner server
hcloud server create --name runner-01 --ssh-key swarm --image ubuntu-20.04 --type cpx11 --location nbg1 --network network-01

# create data server
hcloud server create --name data-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create the volume that will be used by gluster and automount it to the data server (fstab will be already setted)
hcloud volume create --name volume-01 --size 60 --server data-01 --automount --format ext4

Prepare the servers 🛠️

It's time to do the classic minimal boring viable security setup for each server. Use hcloud server ssh xxxxxx-01 for ssh connect and do the same for each.

# ensure last upgrades
apt update && apt upgrade -y && reboot

# configure your locales and timezone
dpkg-reconfigure locales
dpkg-reconfigure tzdata

# create your default non root and sudoer user (swarm in this sample)
adduser swarm # enter any strong password at prompt

# set the user to sudoer group and sync the same ssh root key
usermod -aG sudo swarm
rsync --archive --chown=swarm:swarm ~/.ssh /home/swarm

# setting vim for personal taste and remove sudo password
update-alternatives --config editor
visudo # replace %sudo... line by %sudo ALL=(ALL:ALL) NOPASSWD:ALL

# finally change default ssh port by anything else
vim /etc/ssh/sshd_config # Port 2222
service ssh reload

{{< alert >}} The change of SSH port is not only for better security, but also for allowing more later git ssh access into your custom git provider as GitLab, Gitea, etc. that go through Traefik 22 port, as it will far more practical. {{< /alert >}}

Finally, test your new swarm user by using hcloud server ssh --user swarm --port 2222 xxxxxx-01 for each server and be sure that the user can do commands as sudo before continue.

Then edit /etc/hosts file for each server accordingly in order to add private ips :

{{< tabs >}} {{< tab tabName="manager-01" >}}

10.0.0.3 worker-01 sw-worker-01
10.0.0.4 runner-01 sw-runner-01
10.0.0.5 data-01 sw-data-01

{{< /tab >}} {{< tab tabName="worker-01" >}}

10.0.0.2 manager-01
10.0.0.5 data-01

{{< /tab >}} {{< tab tabName="runner-01" >}}

10.0.0.2 manager-01
10.0.0.5 data-01

{{< /tab >}} {{< /tabs >}}

{{< alert >}} IPs are only showed here as samples, use hcloud server describe xxxxxx-01 in order to get the right private IP under Private Net. {{< /alert >}}

Setup DNS and SSH config 🌍

Now use hcloud server ip manager-01 to get the unique frontal IP address of the cluster that will be used for any entry point, including SSH. Then edit the DNS of your domain and apply this IP to a particular subdomain, as well as a wildcard subdomain. You will see later what this wildcard domain is it for. I will use sw.okami101.io as sample. It should be looks like next :

sw      3600    IN A        123.123.123.123
*.sw    43200   IN CNAME    sw

As soon as the above DNS is applied, you should ping sw.okami101.io or any xyz.sw.okami101.io domains.

It's now time to finalize your local SSH config for optimal access. Go to ~/.ssh/config and add following hosts (change okami101.io and swarm accordingly to your own setup) :

Host sw
    User swarm
    Port 2222
    HostName sw.okami101.io

Host sw-data-01
    User swarm
    HostName sw-data-01
    ProxyCommand ssh sw -W %h:2222

Host sw-runner-01
    User swarm
    HostName sw-runner-01
    ProxyCommand ssh sw -W %h:2222

Host sw-worker-01
    User swarm
    HostName sw-worker-01
    ProxyCommand ssh sw -W %h:2222

And that's it ! You should now quickly ssh to these servers easily by ssh sw, ssh sw-worker-01, ssh sw-runner-01, ssh sw-data-01, which will be far more practical.

{{< alert >}} Note as I only use the sw.okami101.io as unique endpoint for ssh access to all internal server, without need of external SSH access to servers different from manager-01. It's known as SSH proxy, which allows single access point for better security perspective by simply jumping from main SSH access. {{< /alert >}}

The firewall 🧱

Now it's time to finish this preparation section by putting some security. You should never let any cluster without properly configured firewall. It's generally preferable to use the cloud provider firewall instead of standard ufw because more easy to manage, no risk of being stupidly blocked, and settled once and for all.

You need at least 2 firewalls :

1. One for external incoming for SSH and Traefik web standard ports. You'll need a full set of rules, and it will be only enabled for manager-01. The main SSH port will be IP whitelisted to your public IP only.
2. The second firewall is for block all any incoming requests applied to any servers different from the manager-01, even for SSH as we don't need it anymore thanks to above SSH proxy.

{{< alert >}} Note as the Hetzner Cloud Firewall will not apply to the private network at all, as it's already considered to be "secured" ! I hope so, but I'm pretty sure that it will be possible to set a firewall in private networks in the future as we can just believe Hetzner word for word.
How can be sure that any other internal client has no access to our private network ? Use ufw if you're paranoid about that... {{< /alert >}}

Create the 2 firewalls as next :

{{< tabs >}} {{< tab tabName="bash" >}}

# internal firewall to protect internal server from all external access
hcloud firewall create --name firewall-internal
hcloud firewall apply-to-resource firewall-internal --type server --server worker-01
hcloud firewall apply-to-resource firewall-internal --type server --server runner-01
hcloud firewall apply-to-resource firewall-internal --type server --server data-01

# external firewall to protect manager-01 with only required ports
# use the json file from the 2nd tab just above
hcloud firewall create --name firewall-external --rules-file firewall-rules.json
hcloud firewall apply-to-resource firewall-external --type server --server manager-01

{{< /tab >}} {{< tab tabName="firewall-rules.json" >}}

[
    {
        "direction": "in",
        "port": "22",
        "protocol": "tcp",
        "source_ips": [
            "0.0.0.0/0",
            "::/0"
        ]
    },
    {
        "direction": "in",
        "port": "80",
        "protocol": "tcp",
        "source_ips": [
            "0.0.0.0/0",
            "::/0"
        ]
    },
    {
        "direction": "in",
        "port": "443",
        "protocol": "tcp",
        "source_ips": [
            "0.0.0.0/0",
            "::/0"
        ]
    },
    {
        "direction": "in",
        "port": "2222",
        "protocol": "tcp",
        "source_ips": [
            "xx.xx.xx.xx/32"
        ]
    }
]

{{< /tab >}} {{< /tabs >}}

{{< alert >}} Adapt the 4st rule of firewall-rules.json accordingly to your own chosen SSH port and set your own public IP inside source_ips in place of xx.xx.xx.xx value for better security. In case you have dynamic IP, just remove this last rule. {{< /alert >}}

You should have now good protection against any unintended external access with only few required ports to your manager-01 server, aka :

port	description
2222	the main SSH port, with IP whitelist
443	the HTTPS port for Traefik, our main access for all of your web apps
80	the HTTP port for Traefik, only required for proper HTTPS redirection
22	the SSH standard port for Traefik, required for proper usage through you main Git provider container as GitLab / Gitea

1st conclusion 🏁

And that's finally it !

We've done all the boring nevertheless essential stuff of this tutorial by preparing the physical layer + OS part.

Go to the [Part II]({{< ref "/posts/2022-02-18-build-your-own-docker-swarm-cluster-part-2" >}}) for the serious work !
