Setup a Docker Swarm cluster - Part II	2022-02-18	Build an opinionated containerized platform for developer...	docker swarm	build-your-own-docker-swarm-cluster-part-2	true

{{< lead >}} Build your own cheap while powerful self-hosted complete CI/CD solution by following this opinionated guide 🎉 {{< /lead >}}

This is the Part II of more global topic tutorial. [Back to first part]({{< ref "/posts/2022-02-13-build-your-own-docker-swarm-cluster" >}}) to start from beginning.

Installation of Docker Swarm

Docker engine

Now we must do the classic Docker installation on each stateless servers. Repeat following commands on manager-01, worker-01 and runner-01.

curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/ubuntu \
  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt-get update
sudo apt-get install -y docker-ce docker-ce-cli containerd.io

sudo usermod -aG docker $USER

Then logout and use docker run hello-world and be sure all is OK. Follow official installation if not.

Enable Docker Swarm

Finally, enable Swarm mode on manager-01 :

docker swarm init --advertise-addr 10.0.0.2

{{< alert >}} Use private network IP of manager, it' should be the same defined on /et/hosts on other worker servers. {{< /alert >}}

The above command will show the command to launch to other worker nodes. Apply it on worker-01 and runner-01.

When done use docker node ls on manager node in order to confirm the presence of the 2 workers with Ready status and active.

Yeah, cluster is already properly configured. Far less overwhelming than Kubernetes, I should say.

Network file system

Before go further away, we'll quickly need of proper unique shared storage location for all managers and workers. It's mandatory in order to keep same state when your app containers are automatically rearranged by Swarm manager across multiple workers for convergence purpose.

We'll use GlusterFS for that. You can of course use a simple NFS bind mount. But GlusterFS make more sense in the sense that it allows easy replication for HA. You will not regret it when you'll need a data-02. We'll not cover GlusterFS replication here, just a unique master replica.

{{< mermaid >}} flowchart TD subgraph manager-01 traefik((Traefik)) end subgraph worker-01 my-app-01-01((My App 01)) my-app-02-01((My App 02)) end subgraph worker-02 my-app-01-02((My App 01)) my-app-02-02((My App 02)) end subgraph data-01 storage[/GlusterFS/] end traefik-->my-app-01-01 traefik-->my-app-02-01 traefik-->my-app-01-02 traefik-->my-app-02-02 worker-01-- glusterfs bind mount -->data-01 worker-02-- glusterfs bind mount -->data-01 {{< /mermaid >}}

{{< alert >}} Note that manager node can be used as worker as well. However, I think it's not well suited for production apps in my opinion. {{< /alert >}}

Install GlusterFS

It's 2 steps :

• Installing the file system server on dedicated volume mounted on data-01
• Mount the above volume on all clients where docker is installed

{{< tabs >}} {{< tab tabName="1. master (data-01)" >}}

sudo add-apt-repository -y ppa:gluster/glusterfs-10

sudo apt install -y glusterfs-server
sudo systemctl enable glusterd.service
sudo systemctl start glusterd.service

# get the path of you mounted disk from part 1 of this tuto
df -h # it should be like /mnt/HC_Volume_xxxxxxxx

# create the volume
sudo gluster volume create volume-01 data-01:/mnt/HC_Volume_xxxxxxxx/gluster-storage
sudo gluster volume start volume-01

# ensure volume is present with this command
sudo gluster volume status

# next line for testing purpose
sudo touch /mnt/HC_Volume_xxxxxxxx/gluster-storage/test.txt

{{< /tab >}} {{< tab tabName="2. clients (docker hosts)" >}}

# do following commands on every docker client host
sudo add-apt-repository -y ppa:gluster/glusterfs-10

sudo apt install -y glusterfs-client

# I will choose this path as main bind mount
sudo mkdir /mnt/storage-pool

# edit /etc/fstab with following line for persistent mount
data-01:/volume-01 /mnt/storage-pool glusterfs defaults,_netdev,x-systemd.automount 0 0

# test fstab with next command
sudo mount -a

# you should see test.txt
ls /mnt/storage-pool/

{{< /tab >}} {{< /tabs >}}

{{< alert >}} You can ask why we use bind mounts directly on the host instead of using more featured docker volumes directly (Kubernetes does similar way). Moreover, it's not really the first recommendation on official docs, as it states to prefer volumes directly.
It's just as I didn't find reliable GlusterFS driver working for Docker. Kubernetes is far more mature in this domain sadly. Please let me know if you know production grade solution for that ! {{< /alert >}}

Installing the Traefik - Portainer combo 💞

It's finally time to start our first container services. The minimal setup will be :

• Traefik as main proxy with dynamic services discovery through that Docker API
• Portainer as main GUI for docker containers management and deployement

This 2 services will be deployed as docker services on manager-01.

Traefik

The main task of traefik will be to redirect correct URL path to corresponding app service, according to regex rules (which domain or subdomain, which prefix URL path, etc.).

Thankfully, Traefik can be configured to take cares of all SSL certificates generation automatically without any intervention. We will use simple Let's encrypt for this.

The static Traefik configuration

Traditionally I should say that Traefik is clearly not really easy to setup for new comers. The essential part to keep in mind is that this reverse proxy has 2 types of configuration, static and dynamic. Go here for detail explication of difference between these types of configuration.

Here we'll talk about static configuration. Create a YAML file under /etc/traefik/traefik.yml of manager-01 server with following content (TOML is also supported) :

entryPoints:
  https:
    address: :443
    http:
      middlewares:
        - gzip
      tls:
        certResolver: le
  http:
    address: :80
    http:
      redirections:
        entryPoint:
          to: https
          scheme: https
          permanent: true
  ssh:
    address: :22
certificatesResolvers:
  le:
    acme:
      email: admin@sw.okami101.io
      storage: /certificates/acme.json
      tlsChallenge: {}
providers:
  docker:
    defaultRule: Host(`{{ index .Labels "com.docker.stack.namespace" }}.sw.okami101.io`)
    exposedByDefault: false
    swarmMode: true
    network: traefik_public
api: {}
accessLog: {}
metrics:
  prometheus: {}

{{< tabs >}} {{< tab tabName="entryPoints" >}}

name	description
HTTPS (443)	Main Web access, I added a global middleware called gzip that will be configured on next dynamic configuration for proper compression as well as le, aka Let's encrypt, as main certificate resolver
HTTP (80)	Automatic permanent HTTPS redirection, so every web service will be assured to be accessed through HTTPS only (and you should)
SSH (22)	For specific advanced case, as give possibility of SSH clone through your main self-hosted Git provider

{{< alert >}} It's important to have your main SSH for terminal operations on different port than 22 as explained on 1st part of this tutorial, as the 22 port will be taken by Traefik. {{< /alert >}}

{{< /tab >}} {{< tab tabName="certificatesResolvers" >}}

The certificate resolver (aka Let's encrypt) will be configured with TLS-ALPN-01 challenge. The certificate results of this challenge will be stored on acme.json local cache file on the host in order to obviously avoid a certificate regeneration on every Traefik service restart.

{{< /tab >}} {{< tab tabName="providers" >}}

This is the famous source of Traefik dynamic configuration. We only need of Docker as main provider here, but it supports plenty else.

It indicates Traefik to read through Docker API in order to discover any new services and apply automatic configurations as well as SSL certificate without any restart. Docker labels will be used for dynamic configuration.

name	description
swarmMode	Tell Traefik to uses labels found on services instead of individual containers (case of Docker Standalone mode).
exposedByDefault	When false, force us to use traefik.enable=true as explicit label for automatic docker service discovery
network	Default network connection for all exposed containers
defaultRule	Default rule that will be applied to HTTP routes, in order to redirect particular URL to the right service. Each service container can override this default value with traefik.http.routers.my-container.rule label.

As a default route rule, I set here a value adapted for an automatic subdomain discovery. {{ index .Labels "com.docker.stack.namespace" }}.sw.okami101.io is a dynamic Go template string that means to use the com.docker.stack.namespace label that is applied by default on Docker Swarm on each deployed service. So if I deploy a swarm stack called myapp, Traefik will automatically set myapp.sw.okami101.io as default domain URL to my service, with automatic TLS challenge !

All I have to do is to add a specific label traefik.enable=true inside the Docker service configuration and be sure that it's on the traefik_public network.

{{< /tab >}} {{< tab tabName="others" >}}

name	description
api	enable a nice Traefik dashboard (with dark theme support !) that will be exposed on the local 8080 port by default
accessLog	show all incoming requests through Docker STDOUT
metrics	define all metrics to expose or export to a supported service. I will use Prometheus as a default here, it configures Traefik for exposing a new /metrics endpoint that will be consumed later by Prometheus

{{< /tab >}} {{< /tabs >}}

Traefik deployment

In order to deploy Traefik on our shiny new Docker Swarm, we must write a Docker Swarm deployment file that looks like to a classic Docker compose file. Create a traefik-stack.yml file somewhere in your manager server with following content :

version: '3.2'

services:
  traefik:
    image: traefik:v2.5
    ports:
      - target: 22
        published: 22
        mode: host
      - target: 80
        published: 80
        mode: host
      - target: 443
        published: 443
        mode: host
    networks:
      - public
    volumes:
      - /etc/traefik:/etc/traefik
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - certificates:/certificates
    deploy:
      placement:
        constraints:
          - node.labels.traefik-public.certificates == true
      labels:
        - traefik.enable=true
        - traefik.http.middlewares.gzip.compress=true
        - traefik.http.middlewares.admin-auth.basicauth.users=admin:${HASHED_PASSWORD?Variable not set}
        - traefik.http.middlewares.admin-ip.ipwhitelist.sourcerange=78.228.120.81
        - traefik.http.routers.traefik-public-api.service=api@internal
        - traefik.http.routers.traefik-public-api.middlewares=admin-ip,admin-auth
        - traefik.http.services.traefik-public.loadbalancer.server.port=8080

networks:
  public:

volumes:
  certificates:

{{< tabs >}} {{< tab tabName="networks" >}}

We declare 3 ports for each entry point, note as I will use host mode, useful extra performance and getting real IPs from clients.

Then we create a public network that will be created with overlay driver (this is by default on swarm). This is the very important part in order to have a dedicated NAT for container services that will be exposed to the internet.

{{< /tab >}} {{< tab tabName="volumes" >}}

We'll declare 3 volumes :

name	description
/etc/traefik	location where we putted our above static configuration file
/var/run/docker.sock	Required for allowing Traefik to access to Docker API in order to have automatic dynamic docker configuration working.
certificates	named docker volume in order to store our acme.json generated file from all TLS challenge by Let's Encrypt.

{{< alert >}} Note as we add node.labels.traefik-public.certificates inside deploy.constraints in order to ensure Traefik will run on the same server where certificates are located every time when Docker Swarm does service convergence. {{< /alert >}}

{{< /tab >}} {{< tab tabName="labels" >}}

This is the Traefik dynamic configuration part. I declare here many service that I will use later. Adapt for your own needs !

traefik.enable=true : Tell Traefik to expose himself through the network

name	type	description
gzip	middleware	provides basic gzip compression. Note as Traefik doesn't support brotli yep, which is pretty disappointed where absolutly all other reverse proxies support it...
admin-auth	middleware	provides basic HTTP authorization. basicauth.users will use standard htpasswd format. I use HASHED_PASSWORD as dynamic environment variable.
admin-ip	middleware	provides IP whitelist protection, given a source range.
traefik-public-api	router	Configured for proper redirection to internal dashboard Traefik API from traefik.sw.okami101.io, which is defined by default rule. It's configured with above admin-auth and admin-ip for proper protection.
traefik-public	service	allow proper redirection to the default exposed 8080 port of Traefik container. This is sadly mandatory when using Docker Swarm

{{< alert >}} Keep in mind that the middlewares here are just declared as available for further usage in our services, but not applied globally, except for gzip that been declared globally to HTTPS entry point above in the static configuration. {{< /alert >}}

{{< /tab >}} {{< /tabs >}}

It's finally time to test all this massive configuration !

Go to the manager-01, be sure to have above /etc/traefik/traefik.yml file, and do following commands :

# declare the current node manager as main certificates host, required in order to respect above deploy constraint
export NODE_ID=$(docker info -f '{{.Swarm.NodeID}}')
docker node update --label-add traefik-public.certificates=true $NODE_ID

# generate your main admin password hash for any admin HTTP basic auth access into specific environment variable
export HASHED_PASSWORD=$(openssl passwd -apr1 aNyR4nd0mP@ssw0rd)

# deploy our 1st stack and cross the fingers...
docker stack deploy -c traefik-stack.yml traefik

# check status of the service, it should have 1 replica
docker service ls

# check logs for detail or any errors
docker service logs traefik_traefik

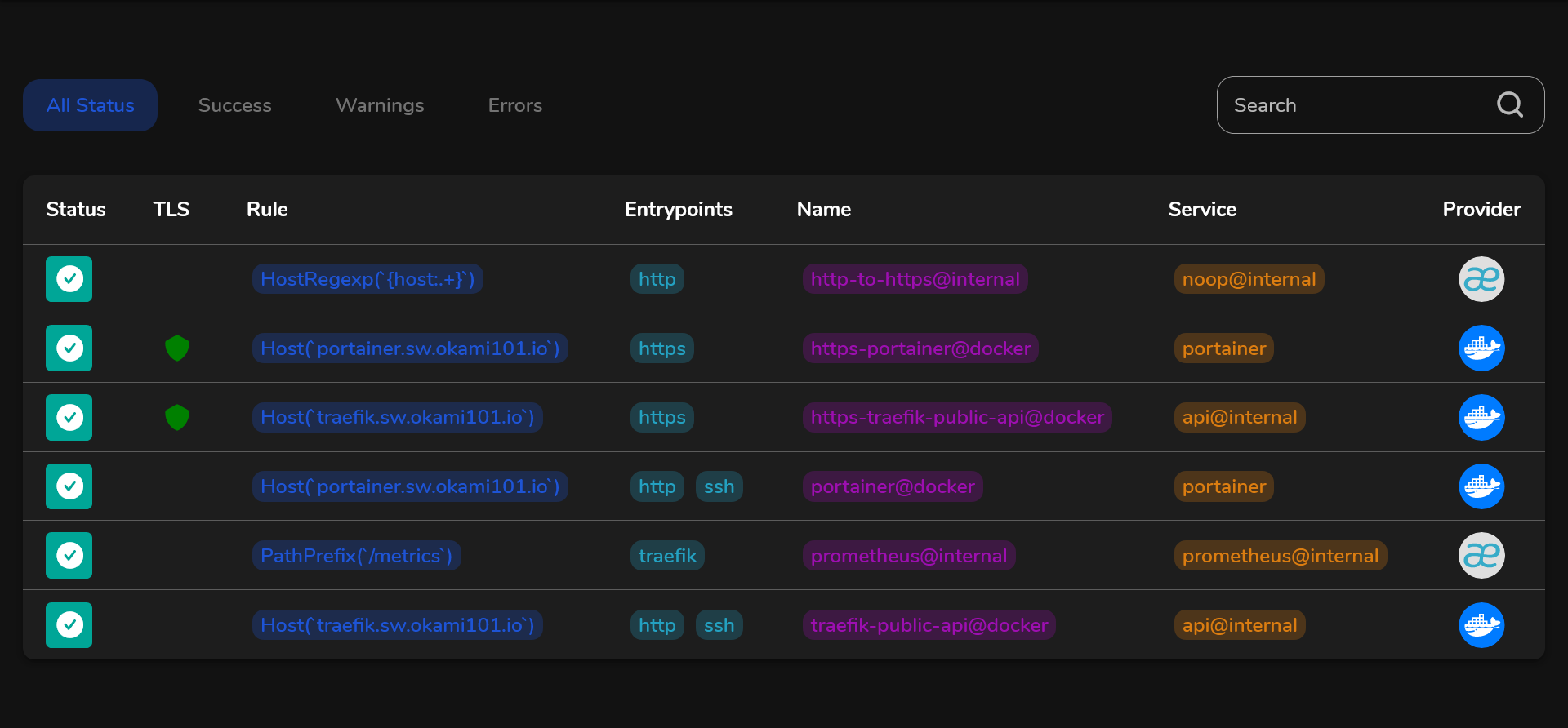

After few seconds, Traefik should launch and generate proper SSL certificate for his own domain. You can finally go to https://traefik.sw.okami101.io. http:// should work as well thanks to permanent redirection.

If properly configured, you will be prompted for access. After entering admin as user and your own chosen password, you should finally access to the traefik dashboard similar to below !

Portainer

The hard part is done, we'll finish this 2nd part by installing Portainer. Portainer is constituted of

• A main GUI that must be exposed through Traefik
• An agent active for each docker node, realized by the global deployment mode of Docker Swarm. This agent will be responsible for getting all running dockers through API and send them to Portainer manager.

Create portainer-agent-stack.yml swarm stack file with follogin content :

version: '3.2'

services:
  agent:
    image: portainer/agent:2.11.1
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /var/lib/docker/volumes:/var/lib/docker/volumes
    networks:
      - agent_network
    deploy:
      mode: global

  portainer:
    image: portainer/portainer-ce:2.11.1
    command: -H tcp://tasks.agent:9001 --tlsskipverify
    volumes:
      - /mnt/storage-pool/portainer:/data
    networks:
      - agent_network
      - traefik_public
    deploy:
      placement:
        constraints: [node.role == manager]
      labels:
        - traefik.enable=true
        - traefik.http.routers.portainer.middlewares=admin-ip
        - traefik.http.services.portainer.loadbalancer.server.port=9000

networks:
  agent_network:
  traefik_public:
    external: true

This is an adapted file from the official Portainer Agent Stack.

We use agent_network as overlay network for communication between agents and manager. No need of admin-auth middleware here as Portainer has his own authentication.

{{< alert >}} Note that traefik_public must be set to external in order to reuse the original Traefik network. {{< /alert >}}

Deploy the portainer stack :

# create the local storage for portainer in Gluster storage
sudo mkdir /mnt/storage-pool/portainer

# deploy portainer stack
docker stack deploy -c portainer-agent-stack.yml portainer

# check status
docker service ls

As soon as the main portainer service has successfully started, Traefik will detect it and configure it with SSL. The specific router for Portainer should appear in Traefik dashboard on HTTP section as below.

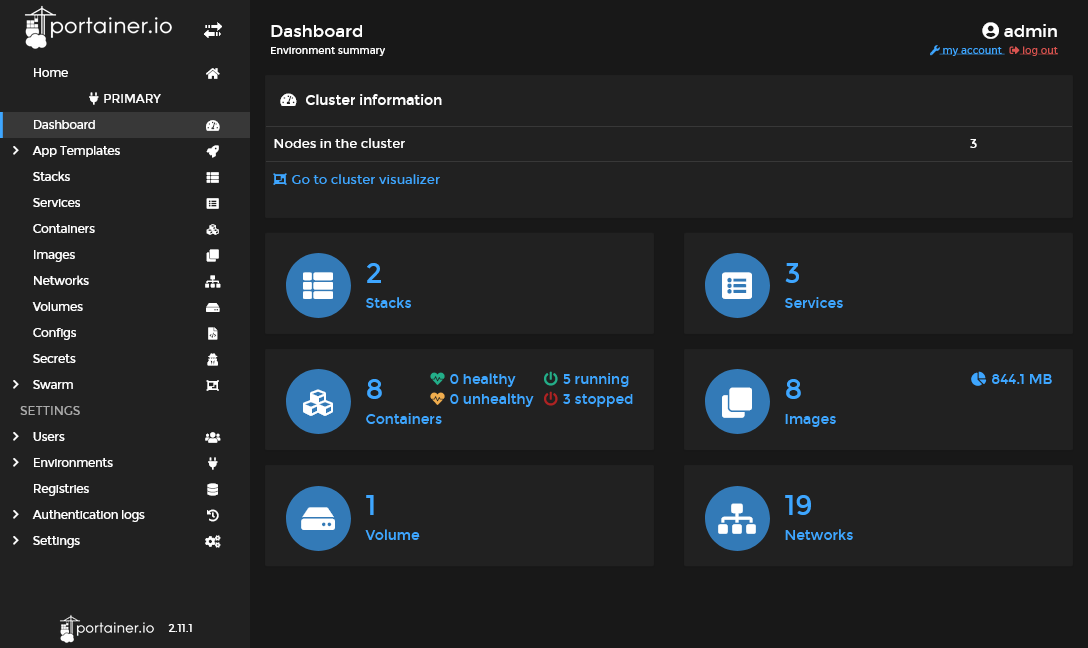

It's time to create your admin account through https://portainer.sw.okami101.io. If all goes well, aka Portainer agent are accessible from Portainer portal, you should have access to your cluster home environment with 2 stacks active.

{{< alert >}} If you go to the stacks menu, you will note that both traefik and portainer are Limited control, because these stacks were done outside Portainer. We will create and deploy next stacks directly from Portainer GUI. {{< /alert >}}

2st conclusion 🏁

We've done the minimal viable Swarm setup with a nice cloud native reverse proxy and a containers GUI manager, with a cloud native NFS.

It's time to test all of this in [Part III]({{< ref "/posts/2022-02-20-build-your-own-docker-swarm-cluster-part-3" >}}).
