Setup a Docker Swarm cluster Part II - Hetzner Cloud	2022-02-15	Build an opinionated containerized platform for developer...	docker swarm	true

{{< lead >}} Build your own cheap while powerful self-hosted complete CI/CD solution by following this opinionated guide 🎉 {{< /lead >}}

This is the Part II of more global topic tutorial. [Back to first part]({{< ref "/posts/02-build-your-own-docker-swarm-cluster" >}}) to start from beginning.

Requirements 🛑

Before continue I presume you have :

• Hetzner cloud account ready
• Installed hcloud cli
• Have a local account SSH key

Initiate the project by following this simple steps :

1. Create the project through the UI (I will use swarm-rocks as project's name here)

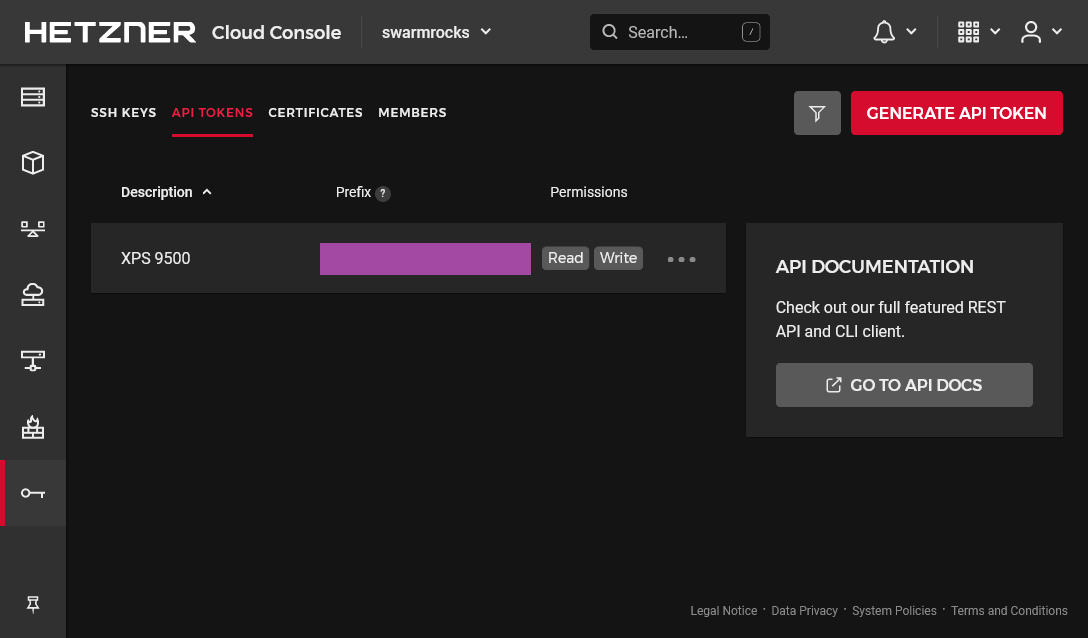

2. Navigate to security > API tokens
3. Generate new API key with Read Write permissions and copy the generated token

Then go to the terminal and prepare the new context

hcloud context create swarm-rocks # set the copied token at prompt
hcloud context list # check that your new project is active

# set your ssh key to the project
hcloud ssh-key create --name swarm --public-key-from-file .ssh/id_ed25519.pub

Now we are ready to set up the above architecture !

Create the cloud servers and networks ☁️

# create private network
hcloud network create --name network-01 --ip-range 10.0.0.0/16

# create a subnet for the network
hcloud network add-subnet network-01 --type server --network-zone eu-central --ip-range 10.0.0.0/24

# create manager server
hcloud server create --name manager-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create worker server
hcloud server create --name worker-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create runner server
hcloud server create --name runner-01 --ssh-key swarm --image ubuntu-20.04 --type cpx11 --location nbg1 --network network-01

# create data server
hcloud server create --name data-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create the volume that will be used by gluster and automount it to the data server (fstab will be already setted)
hcloud volume create --name volume-01 --size 60 --server data-01 --automount --format ext4

Prepare the servers 🛠️

It's time to do the classic minimal boring viable security setup for each server. Use hcloud server ssh xxxxxx-01 for ssh connect and do the same for each.

# ensure last upgrades
apt update && apt upgrade -y && reboot

# configure your locales and timezone
dpkg-reconfigure locales
dpkg-reconfigure tzdata

# create your default non root and sudoer user (swarm in this sample)
adduser swarm # enter any strong password at prompt

# set the user to sudoer group and sync the same ssh root key
usermod -aG sudo swarm
rsync --archive --chown=swarm:swarm ~/.ssh /home/swarm

# setting vim for personal taste and remove sudo password
update-alternatives --config editor
visudo # replace %sudo... line by %sudo ALL=(ALL:ALL) NOPASSWD:ALL

# finally change default ssh port by anything else
vim /etc/ssh/sshd_config # Port 2222
service ssh reload

{{< alert >}} The change of SSH port is not only for better security, but also for allowing more later git ssh access into your custom git provider as GitLab, Gitea, etc. that go through Traefik 22 port, as it will far more practical. {{< /alert >}}

Finally, test your new swarm user by using hcloud server ssh --user swarm --port 2222 xxxxxx-01 for each server and be sure that the user can do commands as sudo before continue.

Then edit /etc/hosts file for each server accordingly in order to add private IPs :

{{< tabs >}} {{< tab tabName="manager-01" >}}

10.0.0.3 worker-01 sw-worker-01
10.0.0.4 runner-01 sw-runner-01
10.0.0.5 data-01 sw-data-01

{{< /tab >}} {{< tab tabName="worker-01" >}}

10.0.0.2 manager-01
10.0.0.5 data-01

{{< /tab >}} {{< tab tabName="runner-01" >}}

10.0.0.2 manager-01
10.0.0.5 data-01

{{< /tab >}} {{< /tabs >}}

{{< alert >}} IPs are only showed here as samples, use hcloud server describe xxxxxx-01 in order to get the right private IP under Private Net. {{< /alert >}}

Setup DNS and SSH config 🌍

Now use hcloud server ip manager-01 to get the unique frontal IP address of the cluster that will be used for any entry point, including SSH. Then edit the DNS of your domain and apply this IP to a particular subdomain, as well as a wildcard subdomain. You will see later what this wildcard domain is it for. I will use sw.okami101.io as sample. It should be looks like next :

sw      3600    IN A        123.123.123.123
*.sw    43200   IN CNAME    sw

As soon as the above DNS is applied, you should ping sw.okami101.io or any xyz.sw.okami101.io domains.

It's now time to finalize your local SSH config for optimal access. Go to ~/.ssh/config and add following hosts (change okami101.io and swarm accordingly to your own setup) :

Host sw
    User swarm
    Port 2222
    HostName sw.okami101.io

Host sw-data-01
    User swarm
    HostName sw-data-01
    ProxyCommand ssh sw -W %h:2222

Host sw-runner-01
    User swarm
    HostName sw-runner-01
    ProxyCommand ssh sw -W %h:2222

Host sw-worker-01
    User swarm
    HostName sw-worker-01
    ProxyCommand ssh sw -W %h:2222

And that's it ! You should now quickly ssh to these servers easily by ssh sw, ssh sw-worker-01, ssh sw-runner-01, ssh sw-data-01, which will be far more practical.

{{< alert >}} Note as I only use the sw.okami101.io as unique endpoint for ssh access to all internal server, without need of external SSH access to servers different from manager-01. It's known as SSH proxy, which allows single access point for better security perspective by simply jumping from main SSH access. {{< /alert >}}

The firewall 🧱

Now it's time to finish this preparation section by putting some security. You should never let any cluster without properly configured firewall. It's generally preferable to use the cloud provider firewall instead of standard ufw because more easy to manage, no risk of being stupidly blocked, and settled once and for all.

You need at least 2 firewalls :

1. One for external incoming for SSH and Traefik web standard ports. You'll need a full set of rules, and it will be only enabled for manager-01. The main SSH port will be IP whitelisted to your public IP only.
2. The second firewall is for block all any incoming requests applied to any servers different from the manager-01, even for SSH as we don't need it anymore thanks to above SSH proxy.

{{< alert >}} Note as the Hetzner Cloud Firewall will not apply to the private network at all, as it's already considered to be "secured" ! I hope so, but I'm pretty sure that it will be possible to set a firewall in private networks in the future as we can just believe Hetzner word for word.
How can be sure that any other internal client has no access to our private network ? Use ufw if you're paranoid about that... {{< /alert >}}

Create the 2 firewalls as next :

{{< tabs >}} {{< tab tabName="bash" >}}

# internal firewall to protect internal server from all external access
hcloud firewall create --name firewall-internal
hcloud firewall apply-to-resource firewall-internal --type server --server worker-01
hcloud firewall apply-to-resource firewall-internal --type server --server runner-01
hcloud firewall apply-to-resource firewall-internal --type server --server data-01

# external firewall to protect manager-01 with only required ports
# use the json file from the 2nd tab just above
hcloud firewall create --name firewall-external --rules-file firewall-rules.json
hcloud firewall apply-to-resource firewall-external --type server --server manager-01

{{< /tab >}} {{< tab tabName="firewall-rules.json" >}}

[
    {
        "direction": "in",
        "port": "22",
        "protocol": "tcp",
        "source_ips": [
            "0.0.0.0/0",
            "::/0"
        ]
    },
    {
        "direction": "in",
        "port": "80",
        "protocol": "tcp",
        "source_ips": [
            "0.0.0.0/0",
            "::/0"
        ]
    },
    {
        "direction": "in",
        "port": "443",
        "protocol": "tcp",
        "source_ips": [
            "0.0.0.0/0",
            "::/0"
        ]
    },
    {
        "direction": "in",
        "port": "2222",
        "protocol": "tcp",
        "source_ips": [
            "xx.xx.xx.xx/32"
        ]
    }
]

{{< /tab >}} {{< /tabs >}}

{{< alert >}} Adapt the 4st rule of firewall-rules.json accordingly to your own chosen SSH port and set your own public IP inside source_ips in place of xx.xx.xx.xx value for better security. In case you have dynamic IP, just remove this last rule. {{< /alert >}}

You should have now good protection against any unintended external access with only few required ports to your manager-01 server, aka :

port	description
2222	the main SSH port, with IP whitelist
443	the HTTPS port for Traefik, our main access for all of your web apps
80	the HTTP port for Traefik, only required for proper HTTPS redirection
22	the SSH standard port for Traefik, required for proper usage through you main Git provider container as GitLab / Gitea

1st check ✅

We've done all the boring nevertheless essential stuff of this tutorial by preparing the physical layer + OS part.

Go to the [next part]({{< ref "/posts/04-build-your-own-docker-swarm-cluster-part-3" >}}) for the serious work !
