Setup a Docker Swarm cluster Part IV - DB & Backups	2022-02-18	Build an opinionated containerized platform for developer...	docker swarm	true

{{< lead >}} Build your own cheap while powerful self-hosted complete CI/CD solution by following this opinionated guide 🎉 {{< /lead >}}

This is the Part IV of more global topic tutorial. [Back to first part]({{< ref "/posts/02-build-your-own-docker-swarm-cluster" >}}) to start from beginning.

Installation of databases

It's finally time to install some RDBS. The most commons are MySQL and PostgreSQL. I advise the last one nowadays, but I'll show you how to install both, web GUI managers included. Choose the best suited DB for your own needs.

We'll install this DB obviously on data-01 as shown in [previous part II schema]({{< ref "/posts/03-build-your-own-docker-swarm-cluster-part-2#network-file-system" >}}).

MySQL 8 🐬

# on ubuntu 20.04, it's just as simple as next
sudo apt install -y mysql-server

# do some secure setup
sudo mysql_secure_installation # let remote root access enabled

Now we need to allow remote root access to the DB from docker nodes in the private network. In MySQL it consists on create a new root user for external host.

First edit /etc/mysql/mysql.conf.d/mysqld.cnf file and comment bind-address line. Then sudo service mysql restart to apply it.

Next use sudo mysql then execute following SQL queries :

CREATE USER 'root'@'10.0.0.0/8' IDENTIFIED WITH caching_sha2_password BY 'myawesomepassword';
GRANT ALL PRIVILEGES ON *.* TO 'root'@'10.0.0.0/8' WITH GRANT OPTION;
FLUSH PRIVILEGES;

10.0.0.0/8 correspond to the subnet mask of private network.

Testing remotely via mysql

It's now time to confirm remote root access working. Connect to the manager-01 host :

# install the client
sudo apt install -y mysql-client

# you should correctly access to your DB after password prompt
mysql -hdata-01 -uroot -p

# save mysql credentials in local swarm account
mysql_config_editor set -hdata-01 -uroot -p

With last command, you now access the db directly from the manager by mysql !

phpMyAdmin

We are now ready to go for installing phpMyAdmin as GUI DB manager. Thanks to our Docker Swarm cluster, it's super simple !

Create a new phpmyadmin stack with following :

version: '3.8'

services:
  app:
    image: phpmyadmin/phpmyadmin:5
    volumes:
      - /etc/hosts:/etc/hosts
    environment:
      MYSQL_ROOT_PASSWORD:
      PMA_HOST: data-01
      UPLOAD_LIMIT: 50M
    networks:
      - traefik_public
    deploy:
      labels:
        - traefik.enable=true
        - traefik.http.services.phpmyadmin.loadbalancer.server.port=80
        - traefik.http.routers.phpmyadmin.middlewares=admin-ip
      placement:
        constraints:
          - node.role == manager

networks:
  traefik_public:
    external: true

The important part is /etc/hosts in order to allow proper DNS resolving for data-01 configured in PMA_HOST environment variable. This will avoid us from dragging the real IP of data server everywhere...

Deploy it, and you should access to https://phpmyadmin.sw.mydomain.rocks after few seconds, with full admin access to your MySQL DB !

PostgreSQL 14 🐘

sudo sh -c 'echo "deb http://apt.postgresql.org/pub/repos/apt $(lsb_release -cs)-pgdg main" > /etc/apt/sources.list.d/pgdg.list'
wget --quiet -O - https://www.postgresql.org/media/keys/ACCC4CF8.asc | sudo apt-key add -
sudo apt-get update
sudo apt-get -y install postgresql-14

Let's allow remote access by editing /etc/postgresql/14/main/postgresql.conf and setting listen_addresses = '*'

Next edit /etc/postgresql/14/main/pg_hba.conf and add following line :

host    all    all    10.0.0.0/8    scram-sha-256

Finally, apply these by sudo service postgresql restart.

Now create our dedicated super admin swarm user :

# create superadmin swarm user
sudo -u postgres createuser swarm -s

# create the user db
sudo -u postgres createdb swarm

Then set the password with sudo -u postgres psql and execute following SQL query :

alter user swarm with encrypted password 'myawesomepassword';

Testing remotely via psql

It's now time to confirm remote root access working. Connect to the manager-01 host :

# install the client
sudo sh -c 'echo "deb http://apt.postgresql.org/pub/repos/apt $(lsb_release -cs)-pgdg main" > /etc/apt/sources.list.d/pgdg.list'
wget --quiet -O - https://www.postgresql.org/media/keys/ACCC4CF8.asc | sudo apt-key add -
sudo apt-get update
sudo apt-get -y install postgresql-client-14

# you should correctly access to your DB after password prompt
psql -hdata-01 -Uswarm

For credential storing, create a .pgpass file with chmod 600 with following content format : data-01:5432:swarm:swarm:myawesomepassword

With last command, you can now access the db directly from the manager by psql -hdata-01 !

pgAdmin

We are now ready to go for installing pgAdmin as GUI DB manager.

First create a pgadmin storage folder with proper permissions :

sudo mkdir /mnt/storage-pool/pgadmin
sudo chown -R 5050:5050 /mnt/storage-pool/pgadmin/

Finally, create a new pgadmin stack with following :

version: '3.8'

services:
  app:
    image: dpage/pgadmin4
    volumes:
      - /etc/hosts:/etc/hosts
      - /mnt/storage-pool/pgadmin:/var/lib/pgadmin
    environment:
      PGADMIN_DEFAULT_EMAIL:
      PGADMIN_DEFAULT_PASSWORD:
    networks:
      - traefik_public
    deploy:
      labels:
        - traefik.enable=true
        - traefik.http.services.pgadmin.loadbalancer.server.port=80
        - traefik.http.routers.pgadmin.middlewares=admin-ip
      placement:
        constraints:
          - node.role == manager

networks:
  traefik_public:
    external: true

You'll need both PGADMIN_DEFAULT_EMAIL and PGADMIN_DEFAULT_PASSWORD variable environment for proper initialization.

Deploy it, and you should access after few seconds to https://pgadmin.sw.mydomain.rocks with the default logins just above.

Once logged, you need to add the previously configured PostgreSQL server address via Add new server. Just add relevant host informations in Connection tab. Host must stay data-01 with swarm as superuser access.

Save it, and you have now full access to your PostgreSQL DB !

Further cluster app testing

Let's now test our cluster with 2 app samples. We'll deploy them to the worker node.

Redmine over MySQL

Redmine is a popular app for ticketing based on Ruby on Rails. With the docker based cluster, no more headache for installing !

We'll be starting by creating the redmine DB with dedicated user through above phpMyAdmin. For that simply create a new redmine account and always specify 10.0.0.0/8 inside host field. Don'forget to check Create database with same name and grant all privileges.

{{< alert >}} Use Native MySQL authentication as authentication plugin, as Redmine doesn't support sha2 yet. {{< /alert >}}

Create dedicated storage folder :

sudo mkdir /mnt/storage-pool/redmine

# for config file
sudo mkdir /mnt/storage-pool/redmine/config

# for files upload
sudo mkdir /mnt/storage-pool/redmine/files

# for custom plugins
sudo mkdir /mnt/storage-pool/redmine/plugins

# for any custom themes
sudo mkdir /mnt/storage-pool/redmine/themes

# save default config locally
sudo wget https://raw.githubusercontent.com/redmine/redmine/master/config/configuration.yml.example
-O /mnt/storage-pool/redmine/config/configuration.yml

# generate a random key for REDMINE_SECRET_KEY_BASE
cat /dev/urandom | tr -dc 'a-z0-9' | fold -w 40 | head -n 1

Next create new following redmine stack :

version: '3.8'

services:
  app:
    image: redmine:4.2
    volumes:
      - /etc/hosts:/etc/hosts
      - ${ROOT_PATH}/config/configuration.yml:/usr/src/redmine/config/configuration.yml
      - ${ROOT_PATH}/files:/usr/src/redmine/files
      - ${ROOT_PATH}/plugins:/usr/src/redmine/plugins
      - ${ROOT_PATH}/themes:/usr/src/redmine/public/themes
    environment:
      REDMINE_DB_MYSQL:
      REDMINE_DB_DATABASE:
      REDMINE_DB_USERNAME:
      REDMINE_DB_PASSWORD:
      REDMINE_SECRET_KEY_BASE:
    networks:
      - traefik_public
    deploy:
      labels:
        - traefik.enable=true
        - traefik.http.services.redmine.loadbalancer.server.port=3000
      placement:
        constraints:
          - node.labels.environment == production

networks:
  traefik_public:
    external: true

Configure REDMINE_DB_* with proper above created DB credential and set the random key to REDMINE_SECRET_KEY_BASE.

{{< alert >}} I use a dynamic ROOT_PATH here. So you must add this variable with /mnt/storage-pool/redmine value in the below Environment variables section of portainer. {{< /alert >}}

After few seconds, https://redmine.sw.mydomain.rocks should be accessible and ready to use, use admin / admin for admin connection !

N8N over PostgreSQL

N8N is a popular No Code tool which can be self-hosted. Lets quick and done install with PostgreSQL.

First connect to pgAdmin and create new n8n user and database. Don't forget Can login? in Privileges tab, and set n8n as owner on database creation.

Create storage folder with sudo mkdir /mnt/storage-pool/n8n and create new following stack :

version: "3"

services:
  app:
    image: n8nio/n8n
    volumes:
      - /etc/hosts:/etc/hosts
      - /mnt/storage-pool/n8n:/home/node/.n8n
    environment:
      DB_TYPE:
      DB_POSTGRESDB_DATABASE:
      DB_POSTGRESDB_HOST:
      DB_POSTGRESDB_USER:
      DB_POSTGRESDB_PASSWORD:
    networks:
      - traefik_public
    deploy:
      labels:
        - traefik.enable=true
        - traefik.http.services.n8n.loadbalancer.server.port=5678
        - traefik.http.routers.n8n.middlewares=admin-auth
      placement:
        constraints:
          - node.labels.environment == production

networks:
  traefik_public:
    external: true

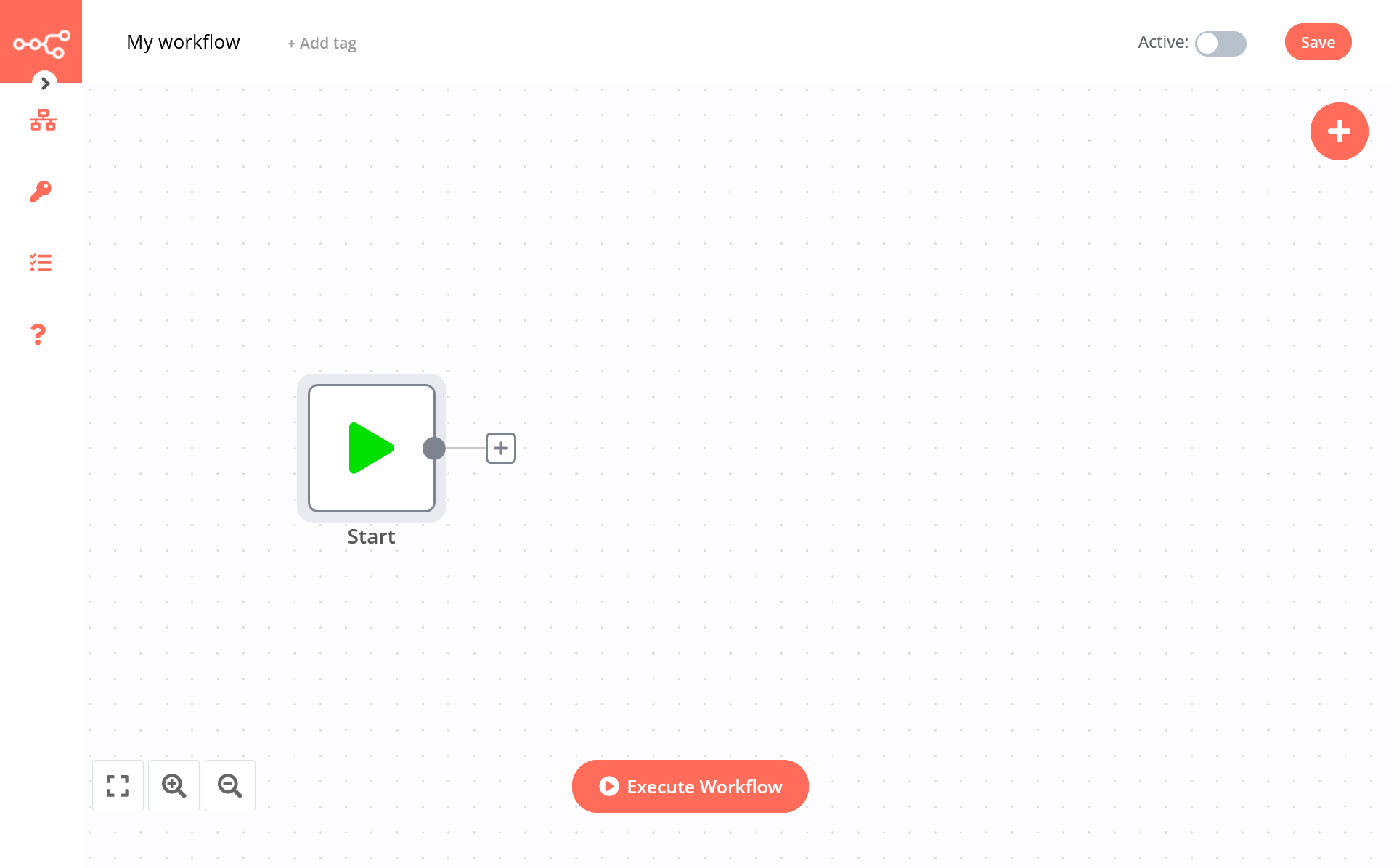

And voilà, it's done, n8n will automatically migrate the database and https://n8n.sw.mydomain.rocks should be soon accessible. Note as we use admin-auth middleware because n8n doesn't offer authentication. Use the same Traefik credentials.

Data backup 💾

Because backup should be taken care from the beginning, I'll show you how to use Restic for simple backups to external S3 compatible bucket. We must firstly take care about databases dumps.

Database dumps

Provided scripts will dump a dedicated file for each database. Fill free to adapt to your own needs.

{{< tabs >}} {{< tab tabName="MySQL" >}}

Create executable script at /usr/local/bin/backup-mysql

#!/bin/bash

target=/var/backups/mysql
mkdir -p $target
rm -f $target/*.sql.gz

databases=`mysql -Be 'show databases' | egrep -v 'Database|information_schema|performance_schema|sys'`

for db in $databases; do
  mysqldump --force $db | gzip > $target/$db.sql.gz
done;

Then add 0 * * * * /usr/local/bin/backup-mysql to system cron /etc/crontab for dumping every hour.

{{< /tab >}} {{< tab tabName="PostgreSQL" >}}

Create executable script at /usr/local/bin/backup-postgresql

#!/bin/bash

target=/var/lib/postgresql/backups
mkdir -p $target
rm -f $target/*.gz

databases=`psql -q -A -t -c 'SELECT datname FROM pg_database' | egrep -v 'template0|template1'`

for db in $databases; do
  pg_dump $db | gzip > $target/$db.gz
done;

pg_dumpall --roles-only | gzip > $target/roles.gz

Use it via crontab -e as postgres user. 0 * * * * /usr/local/bin/backup-postgresql

Then add 0 * * * * /usr/local/bin/backup-postgresql to postgres cron for dumping every hour. To access postgres cron, do sudo su postgres and crontab -e.

{{< /tab >}} {{< /tabs >}}

{{< alert >}} This scripts doesn't provide rotation of dumps, as the next incremental backup will be sufficient. {{< /alert >}}

Incremental backup with Restic

wget https://github.com/restic/restic/releases/download/v0.12.1/restic_0.12.1_linux_amd64.bz2
bzip2 -d restic_0.12.1_linux_amd64.bz2
chmod +x restic_0.12.1_linux_amd64
sudo mv restic_0.12.1_linux_amd64 /usr/local/bin/restic
restic self-update
sudo restic generate --bash-completion /etc/bash_completion.d/restic

Some config files :

{{< tabs >}} {{< tab tabName="~/.restic-env" >}}

Replace next environment variables with your own S3 configuration.

export AWS_ACCESS_KEY_ID="your-access-key"
export AWS_SECRET_ACCESS_KEY="your-secret-key"
export RESTIC_REPOSITORY="s3:server-url/bucket-name/backup"
export RESTIC_PASSWORD="a-strong-password"

{{< /tab >}} {{< tab tabName="/etc/restic/excludes.txt" >}}

Here some typical folders to exclude from backup.

.glusterfs
node_modules

{{< /tab >}} {{< /tabs >}}

1. Add . ~/.restic-env to .profile
2. Reload profile with source ~/.profile
3. Create a repository with restic init (if using rclone instead above keys)
4. Add following cron for backup every hour at 42min :

42 * * * * . ~/.restic-env; /usr/local/bin/restic backup -q /mnt/HC_Volume_xxxxxxxx/gluster-storage /var/backups/mysql /var/lib/postgresql/backups --exclude-file=/etc/restic/excludes.txt; /usr/local/bin/restic forget -q --prune --keep-hourly 24 --keep-daily 7 --keep-weekly 4 --keep-monthly 3

You now have full and incremental backup of GlusterFS volume and dump databases !

{{< alert >}} Always testing the restoration ! {{< /alert >}}

3rd check ✅

We've done the databases part with some more real case app containers samples.

In real world, we should have full monitoring suite, this will be [next part]({{< ref "/posts/05-build-your-own-docker-swarm-cluster-part-4" >}}).
